Nx1 Laser Combiner (LC)—

Classification:产品中心      Reading number:519     update time:2022-11-23 14:16:57

联系我们

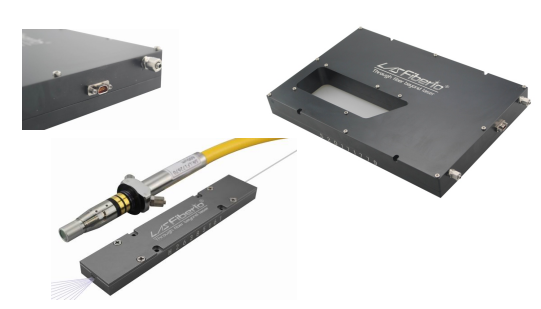

Nx1 Laser Combiner (LC)
  • 产品描述
  • 产品规格
  • 资料下载

产品描述

Description:

Currently, the single fiber laser module output power.goes upto few kilowatt, with semi-singlemode, for example 1.5KW with M2~1.3, even 2KW with M2~1.2, for very thick metal sheet cutting applicaiton, people need combine several modules into multimode fiber to create very high power output, say 4KW, 6KW, 8KW, even 10K~15KW level.The LC combines Npcs (N=2,3,4,7 etc.) amplified laser(say 1080nm 1kw/leg) into one Beam Delivery fiber(say 50um or 100um core size 0.22NA), 19x1 LC is under development.

The PD for temperature and leak light detecting are available.

Applications:

  • Mutil-kilowattsfiber Laser

Features:

  • Each input fiber with CPS integrated

  • Output fiber is CPS integrated.

  • High coupling efficiency >98%

  • Endcapping, armored fiber are optional

Ordering Information:

- Please describe your laser combiner struture, like:

3x1 laser combiner +QBH combo, 20u core size as input fiber of 1500w/leg, 50u core size as output fiber, on

98% eff. When input M2<1.2, the output M2 <7. QBH in 15m armor and 2m bare fiber, totally 17m

-- Drop us mail to sales@lasfiberio.comfor further help.

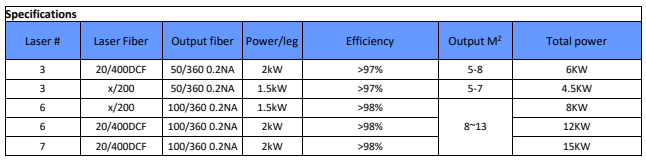

产品规格

Remark:

Customization upon request, such as output bare fiber or with QBH cable output.

All products are with LasFiberio logo, for special request,please contact our sales.
